Product
Xungu Wireless Omnidirectional Microphone with Expansion Mic | OEM
Wireless omnidirectional microphone with 4-array pickup and 8W speaker, supporting up to 4 wireless expansion mics. Ideal for conference rooms up to 60 sqm. OEM/ODM available for export markets.
- Export packaging & documentation support
- OEM / ODM customization available
- Sample and bulk order workflow

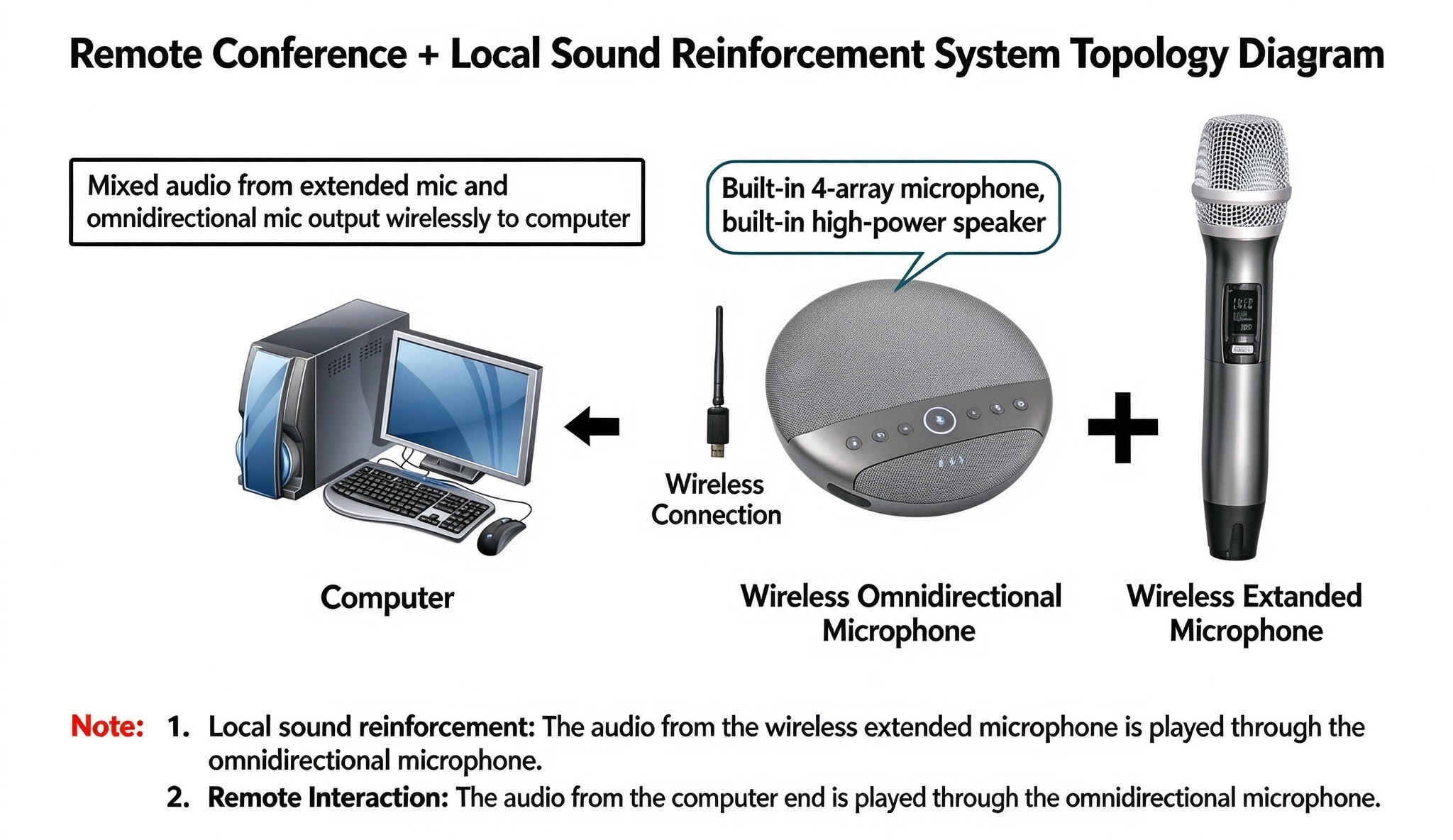

1. A complete system consisting of an omnidirectional array microphone with built-in 4-array pickup microphones and an 8W high-power speaker, plus a wireless expansion microphone. It supports up to 4 wireless expansion microphones. The wireless expansion microphone can be used for local sound reinforcement through the omnidirectional array microphone's speaker. It can simultaneously connect to a PC via USB wired and wireless connections, with low latency, high fidelity, and intelligent dual-mode switching. The wireless expansion approach is recommended for conference rooms under 60 square meters. Equipped with a professional high-performance DSP processor, it provides strong algorithmic support for video conferencing calls based on intelligent mixing, full-duplex intercom algorithm, echo cancellation algorithm, automatic gain algorithm, and intelligent noise reduction algorithm. Within 2.5 meters, both parties can speak simultaneously without stuttering or dropped words, and the sound is clear, smooth, and natural. The speaker playback has bass, and the sound is full and comfortable. It truly achieves easy listening, easy speaking, and no fatigue. Widely used in remote video conferencing, education recording and broadcasting, live streaming, telemedicine, and other fields.
Instructions:
I. Connecting to PC:
2. Insert the wireless receiver into the PC's USB port, long-press the power button of the omnidirectional microphone to turn it on. The wireless receiver and the omnidirectional microphone will connect automatically, and then the blue light will stay on.
3. Turn on the power of the wireless expansion microphone. The wireless expansion microphone and the omnidirectional microphone will also connect automatically, and the LED light on the omnidirectional microphone will also stay blue.
Function Description:
4. Product Features
Wireless Expansion Microphone Parameters:
5. Frequency Range: 640MHz ~ 690MHz
6. Bandwidth: 50MHz
7. Maximum Number of Channels: 200
8. Receiving Sensitivity: <= -105dBm
9. Signal-to-Noise Ratio: >= 80dB
10. Frequency Response: 30Hz ~ 15KHz
11. Audio Output Level: 350 mV
12. Distortion THD+N: < 0.5%
13. Delay Time: < 3ms
14. Power Supply: USB 5V/150mA
15. Operating Temperature: -25°C to 60°C
Array Audio Main Unit Parameters:
16. Supports 3.5mm connection to external sound reinforcement systems for sound amplification, supporting larger venues.
17. Supports local sound reinforcement via wireless expansion microphones, up to 4 wireless expansion microphones. Various wireless expansion microphones such as handheld, lavalier, gooseneck, and array pickup can be selected.
18. Supports simultaneous local sound reinforcement from wireless expansion microphones and mixing output with the array microphone to the video conferencing system.
19. Supports on/off switching of the expansion microphone local sound reinforcement function with one button.
20. Supports simultaneous wired and wireless connection to PC devices.
21. Supports 8-level adjustment of microphone pickup level.
22. Supports 16-level adjustable volume for wired connection.
23. Supports 8-level adjustable volume for wireless connection.
24. Built-in audio algorithms such as echo cancellation, feedback suppression, intelligent noise reduction, and automatic gain.
25. The array microphone and expansion microphone adopt wireless deployment, requiring no installation.
26. The array microphone has built-in 4-array pickup microphones, with a pickup radius of 7 meters, recommended pickup radius of 4 meters.
27. The array microphone has a built-in 8W high-power speaker, with a maximum playback volume of 105dB.
28. The array microphone has a built-in 5200mAh rechargeable lithium battery.
29. The array microphone uses array laser-engraved touch buttons, with multiple lighting effects to display different states for easy checking of device status.
30. The array microphone uses array lights to display battery level, with low battery alarm.
31. The array microphone uses array lights to display the connection status of wireless expansion microphones.
32. The array microphone uses array lights to display the speaker volume playback level.
33. Supports various software such as Tencent Meeting, ZOOM, DingTalk, Haoshitong, Vidyo, Webex, Skype for Business, Google Hangouts, and all other web conferencing software.
34. Compatible with Android, Apple, Windows, Linux, and other operating systems.
